General

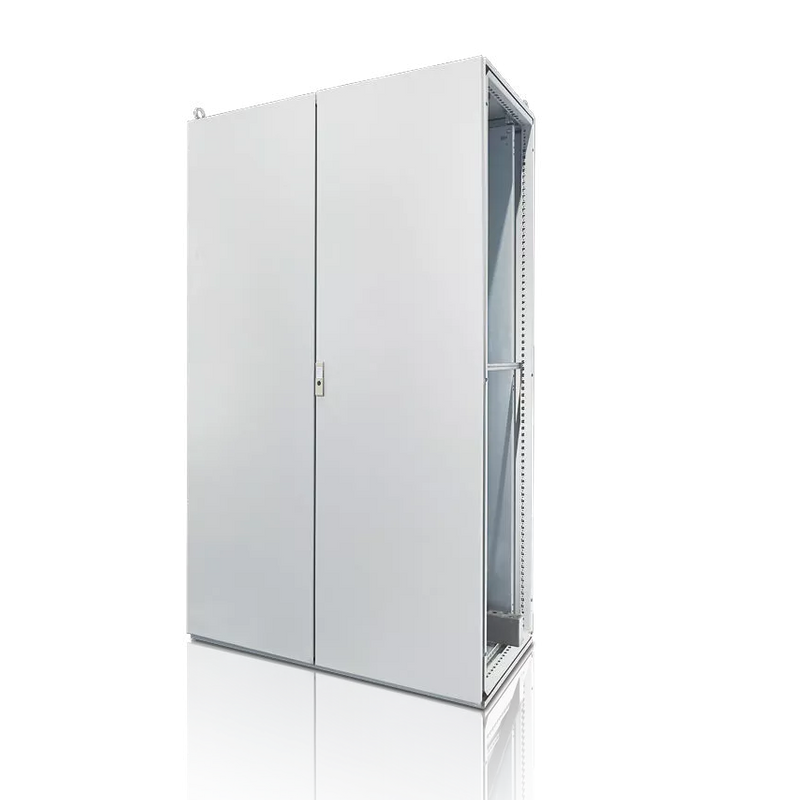

Industrial Control Cabinet can be divided into: ES cabinets (five-fold profile cabinets). PS cabinets (10-fold profile cabinets), TS cabinets16-fold profile cabinets), ndustrial Control Cabinet surface treatment requires a high degree of protection tis also high, and the feature is thatthe Industrial Control Cabinetuses a profile structure. First, the structure of the cabinetis welded, and then the top plate, botom plate, sideplate, door plate, and device plate are fixed on the structure with screws. This advantage is that the product is modular. The structure isconvenient to use.
Structur Description
The combined electric cabinetis suitable for combining cabinets. The main frame formed by the unique nine-fold profie welded integrally carensure the high strength of the cabinet and the protection levelto lP54: the door panel is high from the ground, about 25mm, to ensure tlexibleand smooth opening! The frame is densely covered with 25mm pitch modulus holes to ensure flexible installation Sex.
MainFeatures
Industrial Control Cabinet can be divided into three series in terms of structure, ES cabinets (five-fold profile cabinets), PS cabinets (10-foldprofie cabinets), TS cabinets (16-fold profile cabinets). The biggest feature is that the Industrial Control Cabinet are Select the profilestructure structure, first weld the structure of the cabinet,and then fi the top plate, bottom plate, side plate, door plate, and device plate to thestructure with screws. This advantage is that the product has a modular structure and is convenient to use;
The product is beautiful, and the Industrial Control Cabinet seeks the perfect concept from the application and appearance of industrialproducts. The sheet metal structure planning and the deployment and use of accessories are also very reasonable and scientfic, forming astandardized supporting plan;
Easy to use, the interal longitudinal beams, columns, beams, walking lines and the planning of its own molded holes make the user's devicefeel handy and convenient;
Robust and durable, safe and reliable, the structure of Rittal cabinet makes the structure stable, and the maximum load of a single cabinet is2000KG, without fear of installing any bulky equipment;
Imitated Industrial Control Cabinet from carbon steel and stainless steel. The material thickness is acquiesced to be 2. Omm for door panel2.5mm for installation panel and 1.5mm for cabinet body;
The surface treatment of carbon steelis acquiesced by plastic spraying, and the phosphating primer treatmentis done before spraying, andthe color is RAL7035. The surface treatment of stainless steel acquiesce in drawing processing;
