|Product Advantages
1） Lightweight and easy to install
The overall mass of a composite pole is only 1/5~1/10 ofthat of a traditional cement pole. Especially segmentedpoles that can be easily and quickly transported by twopeople in mountainous areas without mechanical condi-tions, they can be erected in l5 minutes without anymechanical conditions, with extremely strong maneuver-ability. The extremely light weight reduces the need fortransportation manpower and lifting equipment, makingthem particularly suitable for rapid repair ofpoleoverturning and breaking accidents in complex terrain,greatly reducing power outage time.
2） Great strength
The production process ofcomposite poles useshigh-strength glass fibers to enhance the high-perfor-mance resin system.By simulating and optimizing theglass fiber laying method, the maximum reinforcementeffect of glass fiber can be achieved to obtain theultra-high mechanical strength of composite poles. Themechanical bending load test results show that the failurevalue is about 6 times that ofordinary cement poles. Afterunloading the bending load, the composite pole canrecover to its initial state.
3） Corrosion resistance
Saline alkali soil can cause corrosion anddamage to the steel inside cement poles, reduc-ing the strength of wire poles. Fiberglass-rein-forced plastic materials have the properties ofacid resistance, alkali resistance, salt resistance,and organic solvents. In particular, the protectivelayer on the surface of composite wire polesuses special formula resinswithvariousfunctional additives, further enhancing thecorrosion resistance of composite wire poles. Itcan effectively protect the main body of the wirepole and greatly extend its service life.
4） Low temperature resistance
The main raw materials for composite poles are alkali-free fiberglass, polyurethane resin(orepoxy resin),and produced through special processes as fberglass composite materials with good high and low temperature resistance.Long-term application inlow-temperature environments without cracks,delamination,and other abnormalities, composite poles havea temperature resistance range of -70°C-+70°Cand do not produce cracks during high-low-temperature alternating processes.
5）Flame retardance
The flame retardant rating of composite poles is V-0.which can be better suitable for areas with frequentmountain fires and circuit repair work after fires occur.
The design life of ordinary concrete poles isonly 20 years, while the effective service life ofcomposite poles can reach up to 50years,which has outstanding advantages, and thepoles are maintenance-free throughout theirentire life cycle.
8)Non-leachable
Therefore no harmful substances are released into the environment and it is suitable for use in areas with high conservation value.
Additionally, structures made from FRP contribute to the decarbonization of buildings and contribute to a more positive impact on the environment by reducing global warming through the reduction of embodied carbon.

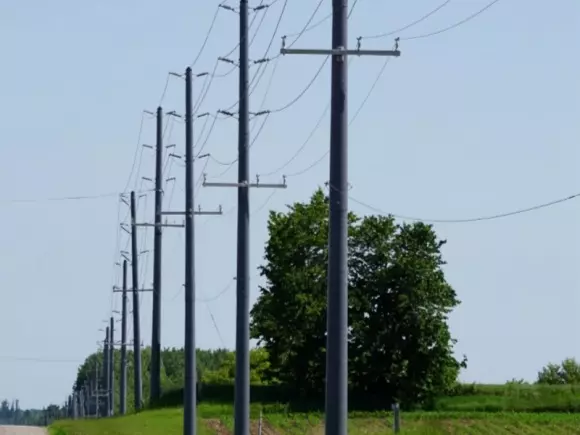

|Added Benefits of FRP Utility Poles
(1) FRP products can withstand extreme weather, high temperatures and are even fire resistant. FRP utility poles have been engineered to withstand extreme loads, such as high winds and storms, making them a resilient choice in regions where traditional poles may fail or need to be replaced frequently. (2) Acomposite pole is recognised as maximising network security and resilience. FRP composite poles are extremely durable with an expected 80-year design life. For comparison’s sake, steel poles, wood poles and concrete poles generally last much less, especially in highly corrosive environments. Their low-maintenance nature leads to reduced inspection schedules, fewer site visits and long-term savings on labour costs.

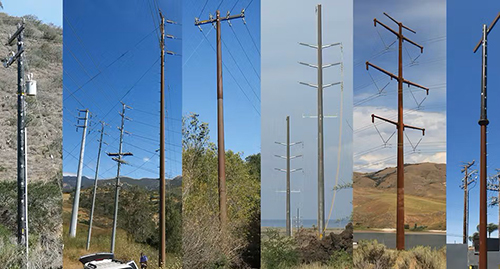

|Application Cases
Uniquely pultruded from composite fibre, Wagners light poles are lightweight, sturdy poles that will not rust, corrode or rot, even in the harshest weather.

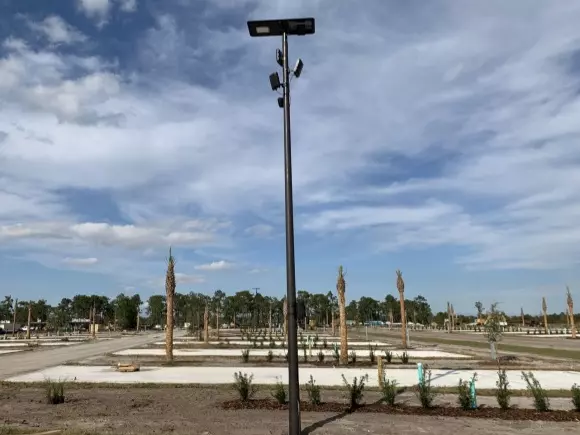

Our light poles are perfect for environmentally sensitive areas. So, whether you are lighting a marine boardwalk, tennis court, botanic garden, street, parking lot or a national park, we have a lighting pole solution for you.
safe and environmentally friendly utility poles for energy infrastructure asset owners around the world.
Our uniquely pultruded Fibre Reinforced Polymer (FRP) utility poles are safer than traditional poles because they do not conduct electricity thereby reducing risk associated with shock or electrocution, especially during installation.
