C-SIVACON 8PT

Product Overview

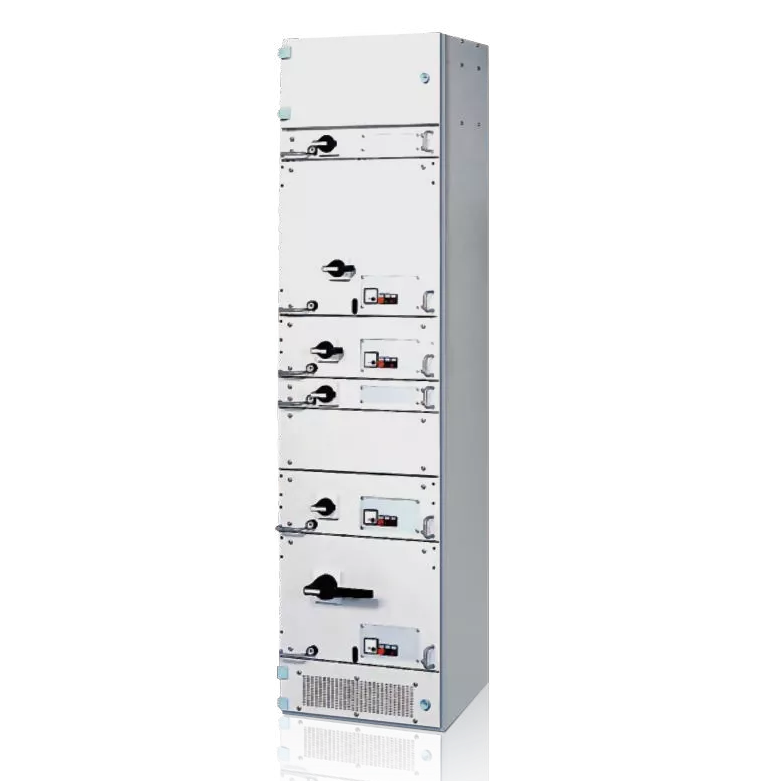

As the standard solution of engineering and Industrial areas, SIVACON 8PT low-voltage switchgear, aiming at different market demands in the world, not only meets standardization requirements in main constructing projects, but also benefits ivestment and run ot localization production.SIVACON 8PT is a distribution equipment popularized workdwide, and can be applied to various capacty levels with maximum rated current being 7400A. I adopts fixed, mobile, withdrawable and other kinds of module design, and is widely used in power station, petroleum, chemical engineering, metallurgy, textile, and high-rise buildings.

Structural description

1. Modularization: The equipment is composed of standard and modular module. Al the modules all meet design index of Siemens and can be combined flexibly to meet different requirements. Excellent components manutactured by Siemens are used to ensure the long-term reliable

operation of the equipment.

2. Reliability: The equipmentis designed and tested as per intemational standard (TTA) with 3-and 4-pole hortzontal bus system and maximum

rated current of 7400A;

3. Rationalization: Components can be enclosed in component compartment randomly, regardless the depth dimension of horizontal bus system

and switchgear.

4.Intellectualization: Elements containing advanced protection and communication functions can be integrated in the equipmentto protect power

distribution and motor.

Main features

Frame of SIVACON 8PT is made of 2. 5mm thick aluminum zinc plate, and modular holes with interval of 25mm are distributed on the frame for extension.

Flexitble switchgear door (with maximum open angle of 180° )is adopted to meet different requirements,and the afliated spiral spring lock could protect the door panel against opening due to negligence or accident.

Pressure-relief device is equipped on the top of switchgear to prevent accidental injury caused by electrical fault.

Bus compartment is separated from device compartment with internal separation reaching 3b.

Eight kinds (100, 150, 200, 300, 400, 500, 600 and 70omm)of standardized design are adopted for the drawer units, and drawer of the same specification can be exchanged completely; All the drawers are provided with anit-misoperation function.

The drawer, with maximum 40 secondary plugs, can add communication bus plug as needed.

Switchgear protection grade is IP30-IP54.
