C-BM6Plus low-voltage switchgear can be applied to all low-voltage systems, electrical power distribution systems and electrical control systems that require high reliability. It is widely used in industrial and mining enterprises, high-rise buildings, municipal construction and other low-voltage power distribution systems. The products comply with GB7251-2013 and other relevant standards.
Structur Description
1. Comprehensiveness:
Based on Schneider Electric’s advanced technical experience in the field of low-voltage electrical equipment and low-voltage switchgear systems.
2. Reliability:
Designed and tested in accordance with GB7251-2013.
3. Modularization:
Composed of standardized prefabricated components, enabling rapid manufacturing, easy modification and cost reduction.
4. Intelligence:
Components with advanced protection and communication functions can be integrated into the equipment to provide reliable power distribution and motor protection.
Main Features

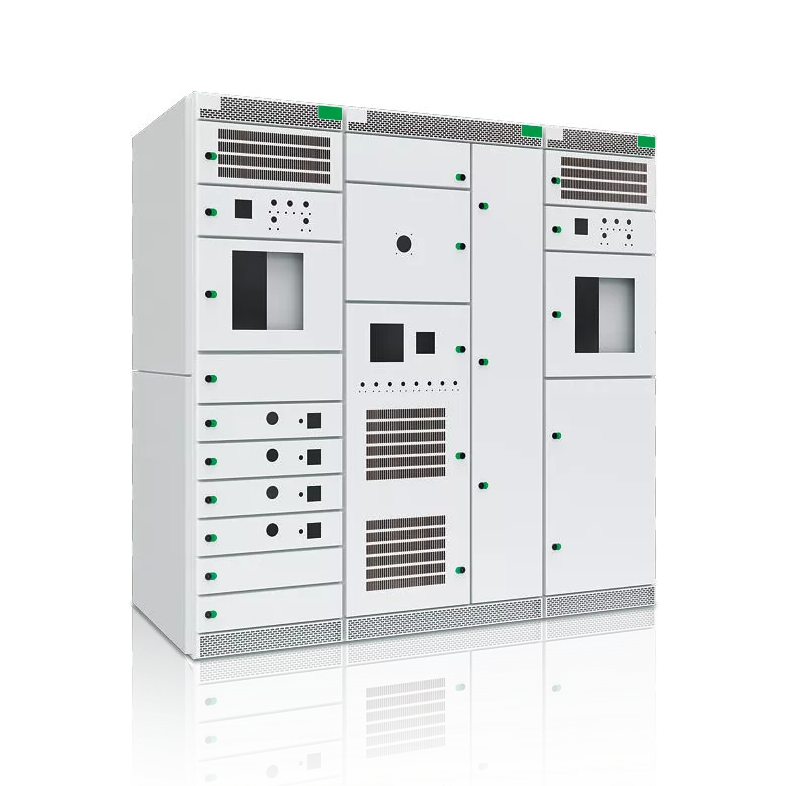

The switchgear cabinet adopts a drawer-type and fixed-type structure. The effective installation height of each cabinet is 40 modules, and the height of each module is 50 mm.
The cabinet width is available in 600 mm, 800 mm, and 1000 mm, while the unified cabinet depth is 1000 mm.
It features a modular multifunctional series, including:
Fixed cabinet
Power factor compensation cabinet
Motor control center (MCC) cabinet (fixed partition type or drawer type)
A pressure release device is installed on the top of the cabinet to prevent accidental injury caused by electrical faults.
The installation methods of switching components include fixed type, plug-in type and drawer type.
The drawer height specifications of the functional units include 3M, 4M, 6M, 9M and 12M. The motor capacity of a single drawer in the complete set of switchgear does not exceed 160 kW, and the rated current for power distribution does not exceed 400 A. Drawers of the same specification are 100% interchangeable, ensuring fast and reliable maintenance and replacement.
Plug-in switches and other components can be installed in fixed compartments. Fixed compartments of different heights can be selected according to the size of switches and other components, generally 4M, 6M, 9M and 12M.
Different compartments are completely independent, ensuring safe and reliable operation.
The protection degree of the cabinet is IP4X.
