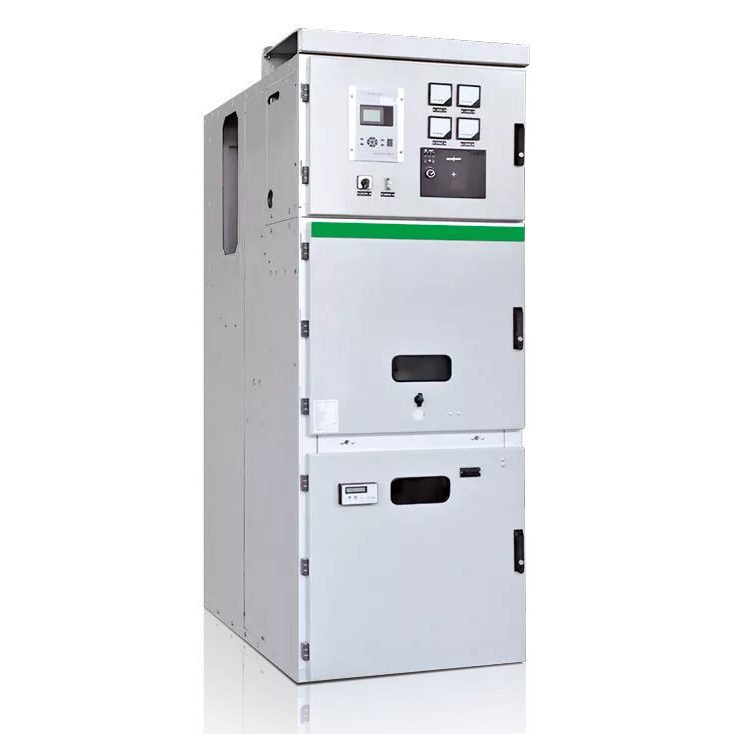

C-MVnex mid-mounted switchgear is suitable for power generation and power supply systems with a rated working voltage of 12kVand a rated current of 4000A and below. Itis used for centralized control of power, power distribution and motors, and capacitorcompensation. C-MVnex focuses on medium voltage substations, which are widely used in HV/MV substations or MV/MVsubstations, hospitals/airports/ports, commercial centers/residentials/sports stadums, cementwater treatment, data centers, ralltransit, etc. This product Comply with IEC60694, IEC 60529, GB 11022 and other standards. Equipped with a high-performance HVXsolid-sealed vacuum circult breaker, with high parameters, complete solutions, and a wealth of one -time wiring solutions,It can meetthe needs of different users and industries.
Structur Description
C-MVnex mid -mounted swichgear design uses various advanced methods such as computer-aided design, synthesis laboratory,dynamic simulation, etc.,all cabinet types have been tested according to the latest version of the IEC publication: About mediumvoltage switchgear and control equipment IEC 60298 and 60694, IEC 60529, which defines the degree of protection of enclosures,and other standards.
Main Features
The appearance is novel, flat and concise, the color is uniform, thick, and the proportion is coordinated;
Covering circuit breaker cabinets, contactor cabinets and other special cabinet types to meet the needs of different industries;Integrated and unique design concept, cleverly realize the five-proof interlock, and achieve higher electrical performance andsafety standards;
Unique lead screw drive earthing switch, powerful function set mechanism operation box;Built-in HVX solid-sealed vacuum dircuit breaker, which has strong environmental adaptability and quality assurance;
On-site manual operation is extremely simple, and the analog icon on the front panel of each switchgear makes the operatingprocedures and opening and closing operations very easy to understand;
The perfect mechanical and electrical interlock effectively prevent misoperation;
Has a more user-friendly man-machine interface for easy operation;
Globally unified standardized parts, easy to purchase;
The enclosure protection level of the swtch cabinetis IPAX, and the protection level of each compartment reaches IP2X.
