General
C-MDmax FC is combined mult -function low-votage switchgear passed complete typetest (TTA). The product meets GB7251.1-2005.IEC60439- 1 and relevant standards and can be widely used in areas such as electronic industry, industrial and mining enterprises, tobaccoindustry, municipal facilities, commercial building and high-end civil residence.
Structur Description
1. Comprehenshveness: Itadopts ABB whole series low-voltage electrical components, including; Megamax and Emax air circut breakerIsomax and Tmax plastic circuit breaker, A- series contactor, and TA thermal relay and soft starter, composing complete and reliablelow-voltage power distribution system.
2. Reliability: It is designed and tested as per international standard;
3. Modularzation: ts composed of standardized prefabricated components, which can be manufactured rapidy and modified easly and can
save costs.4. Intellectualzation: Elements containing advanced protection and communication functions can be ntegrated in the equipmentto protectpower distribution and motor.
Main Features

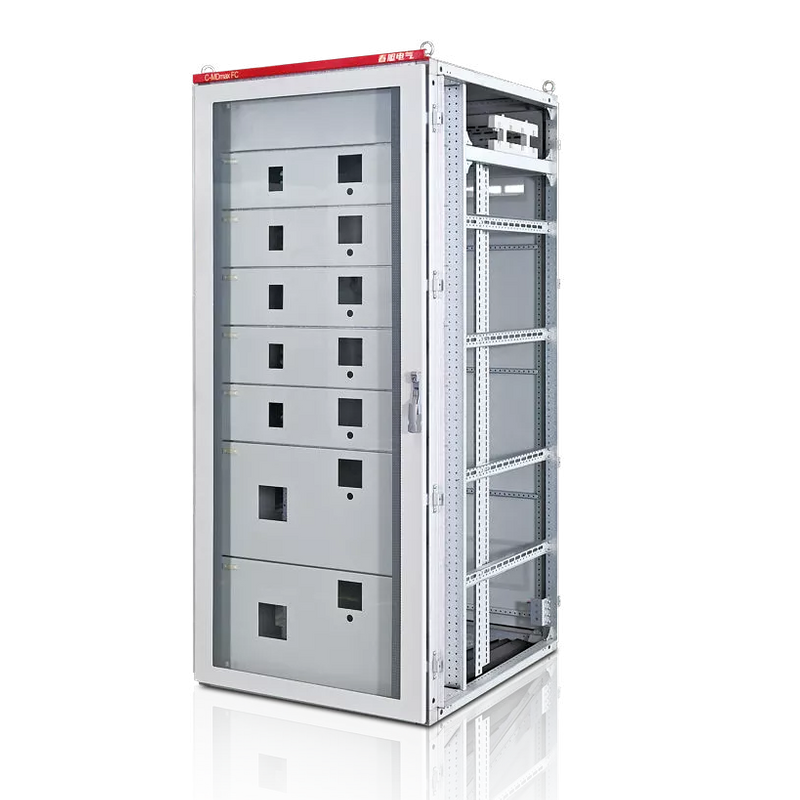

Three dvided compartments are set in the internal part of the frame: Equipment compartment for unit component, bus compartment formain bus and distribution bus, compartment for cable in and out (upper and lower incoming andoutgoing line is available)CMDmax FC frame adopts double-fold process, and is composed of T-material made of aluminum zinc plate. Modular holes with intervalof 25mm are distrbuted on the frame; and the frame can be assembled rapidly and fexibly. Switchgear frame is assembled by aluminumT-joint to effectively prevent eddy current. The switchgear body has highsymmetry precision.It adopts novel glass-door design, which not only improves the safety of switchgear but also improve the appreciative characteristic.Inserted or withdrawable breaker is adopted for switch in the switchgear to ensure the safety while replacing ormaintaining elements.Feeder circuit of power distribution control cabinet can be up to 18-loop (internal division form: 3b).Switchgear protection grade is IP40-1P55.
